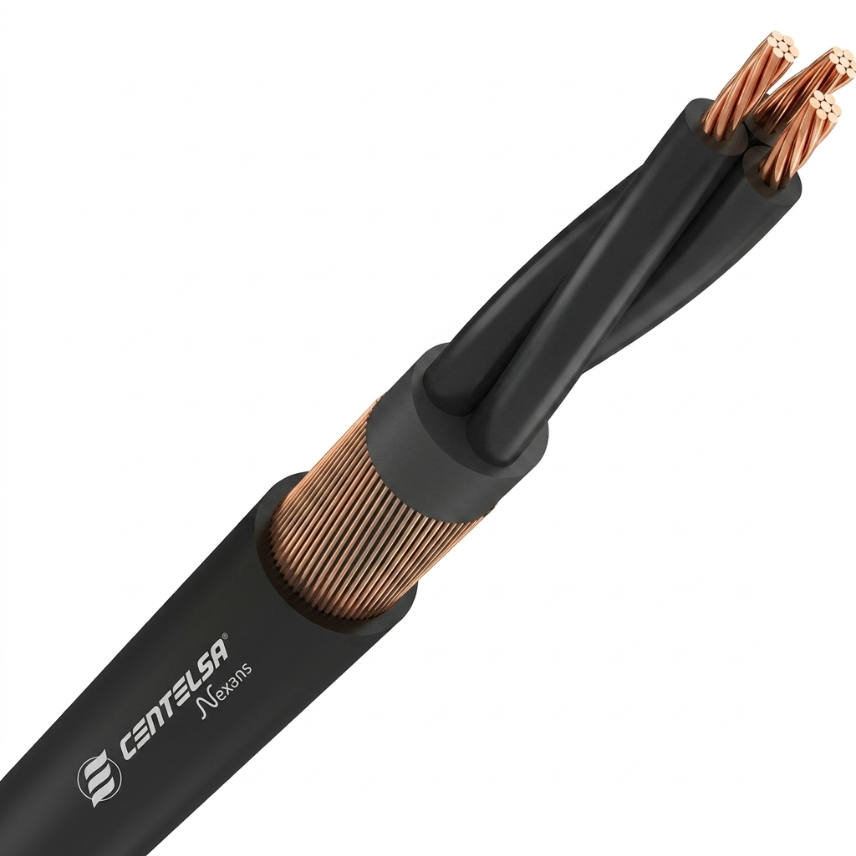

CONCENTRIC SERVICE ENTRANCE CABLE Cu 600V XLPE/XLPE - EPM
Certifications and labels
CONCENTRIC SERVICE ENTRANCE CABLE Cu 600V XLPE/XLPE - EPM
Copper conductors with XLPE insulation, concentric neutral, and XLPE outer sheath.
Read more1x8+8AWG
Nexans ref.
- Conductor cross-section: 8.37 mm²
- Nominal outer sheath thickness: 1.14 mm
- Nominal outer diameter: 10.28 mm
- Approximate weight: 213.59 kg/km
- Max. DC resistance of the conductor at 20°C: 2.144 Ohm/km
- Ampacity: 55.0 A
2x6+6AWG
Nexans ref.
- Conductor cross-section: 13.3 mm²
- Nominal outer sheath thickness: 1.52 mm
- Nominal outer diameter: 20.38 mm
- Approximate weight: 689.52 kg/km
- Max. DC resistance of the conductor at 20°C: 1.349 Ohm/km
- Ampacity: 75.0 A
2x8+8AWG
Nexans ref.
- Conductor cross-section: 8.37 mm²
- Nominal outer sheath thickness: 1.52 mm
- Nominal outer diameter: 18.29 mm
- Approximate weight: 496.55 kg/km
- Max. DC resistance of the conductor at 20°C: 2.144 Ohm/km
- Ampacity: 55.0 A
3x6+6AWG
Nexans ref.
- Conductor cross-section: 13.3 mm²
- Nominal outer sheath thickness: 1.52 mm
- Nominal outer diameter: 21.56 mm
- Approximate weight: 826.15 kg/km
- Max. DC resistance of the conductor at 20°C: 1.349 Ohm/km
- Ampacity: 75.0 A
Description
Description
Applications
These cables are used as input from the secondary distribution network to the connection equipment and their output to the service switch or totalizer, aerial installation or in ducts.
Note: Any other application or use not described above is considered prohibited.
Construction
Conductor
Soft copper conductors, concentrically stranded, Class B.
Insulation
Cross-linked polyethylene (XLPE) compound, flame retardant (FR), UV resistant (SR).
Neutral
Copper wires, helically applied in an alternating or oscillating SZ configuration, forming the concentric neutral.
Overall Jacket
External cover with cross-linked polyethylene (XLPE) compound, flame retardant (FR), resistant to abrasion, heat, moisture, and sunlight (SR).
Applicable Standards
- ET-TD-ME01-23
- NTC 4564, UL 854
- NTC 1099-1, ICEA S-95-658
Certificate
- CIDET N° 00416
- CIDET N° 02400
- CIDET N° CP25_00621
Operating Temperature
90 ºC
Operating Voltage
600 V
Identification
Identification of conductors:
- 1 Phase: Black
- 2 Phases: Black - Black/Red Stroke.
- 3 Phases: Black/Yellow Stroke - Black/Blue Stroke - Black/Red Stroke
Ampacity Conditions
- Ampacity for ambient temperature 30°C, conductor temperature 90°C, no more than three current carrying conductors in a duct according to NTC 2050 Table 310.15(B)(16)
- Data indicated in this table are subject to normal manufacturing tolerances.
NOTE:
- The data reported here are nominal and are subject to tolerances according to standards and normal manufacturing practices.
- Other configurations not specified in this catalog may be available under special request and minimum manufacturing quantities.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
Fire safety characteristics
