A.12AWG

Application

Used for electrical wiring in buildings, in feeder circuits, branches and secondary industrial, commercial and residential indoor networks. Special for installations in abrasive environments or environments contaminated with oil, grease, gasoline and other chemical substances.

They are suitable for installation in ducts, pipes, boards and cable trays according to RETIE article 20.3, literal J, from 12 AWG size and larger.

Note: Any other application or use not described above is considered prohibited.

Construction

Conductor

Soft copper wire.

Insulation

Polyvinyl chloride (PVC), flame retardant (FR), resistant to heat, abrasion and humidity, resistant to sunlight (SR) in black, free of hazardous substances (RoHS).

Jacket

Polyamide (Nylon), resistant to gasoline and oils (GR II).

Applicable Standards

UL 83, NTC 1332

Certificate

RETIE N° 00406
RETIE N° 01864

Operating Temperature

90°C dry, moisture and wet places.

Operating Voltage

600 V

Identification

• Insulation in colors according to the manufactuing standard: Black, White, Red, Green, Blue and Yellow.

Packaging

• 100 meter Coils

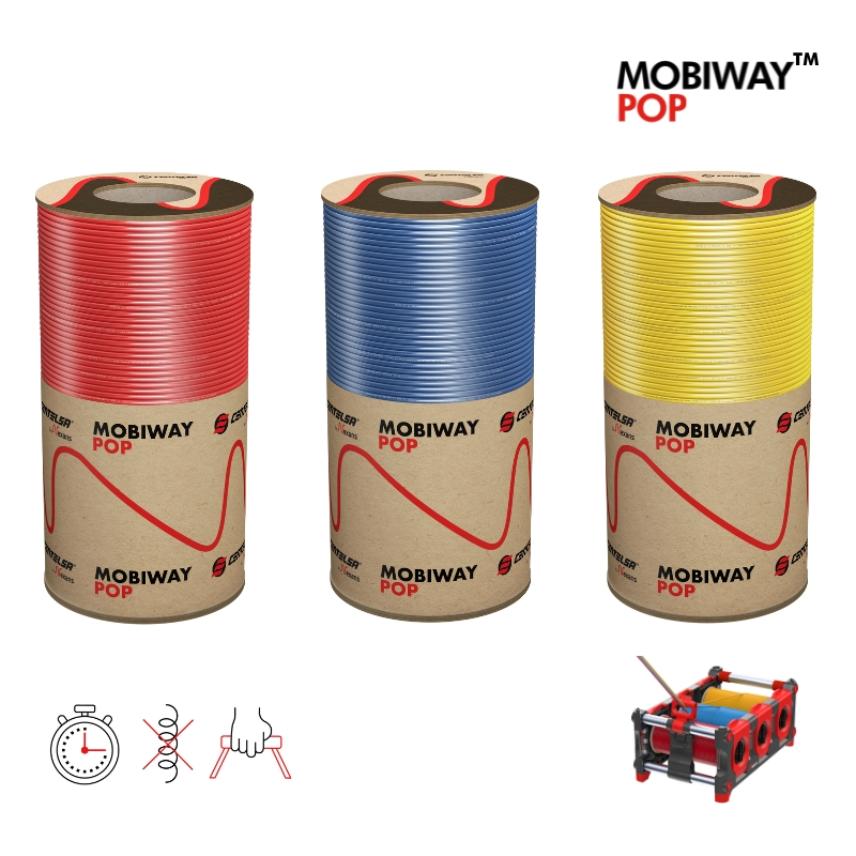

• 100 meter Spools Mobiway™ POP
• 500 meter Drums
• 1000 meter Drums
